Installation- supported models

Supported Digital Signage Devices

Use this article as a guide for purchasing a supported Digital Signage device to run your Vibe channel.

LG WebOS (SoC)

Idea
Vibe.fyi recommends LG Commercial Screens running System on Chip (SoC) technology. It's a robust, reliable and secure solution for your digital signage network.
SoC removes the need for physical media players - decreasing the risk of failure and reducing cost.
Vibe's LG SoC solution offers enhanced security and makes it easy to maintain a large-scale network of screens.

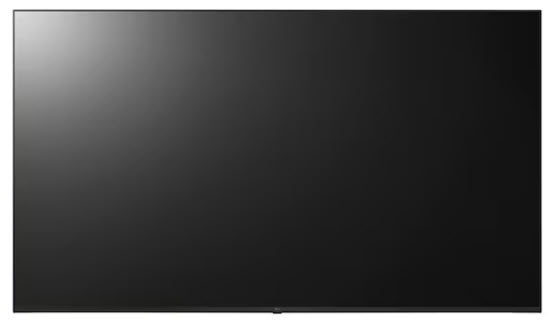

Digital Signage Screens

  1. UH5 Series - 500nit brightness, 24/7 Operation
  2. UL3 Series - 300 - 400nit brightness, 16/7 Operation (Entry level)
  3. UM5 Series - 500nit 98" and 110" Displays 24/7 Operation (Commercial displays)
  4. SM5 Series - All size options are obsolete except for the 32" size (Older signage displays)
  5. UH7 Series - 700nit brightness, 24/7 Operation
  6. BH5 and BH7 Series - Ultra-stretch displays
  7. XS4 Series - 4000nit Window Facing Display FHD (High bright / outdoor)
  8. XS2 Series - Legacy model, 2500nit
  9. VM / VL / VH Series - Video Walls
  10. EF / EG / EJ / EV Series - Transparent / OLED

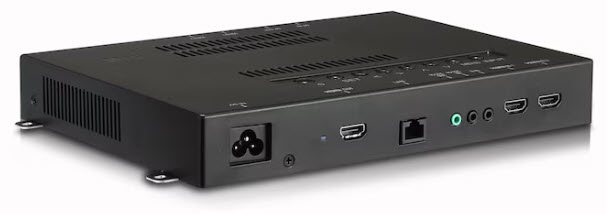

Media Player Box

  1. WP40x  (WP402 etc)
  2. WP60x (WP600 etc)



Samsung Tizen SoC

Full access to all available remote commands is supported on Tizen 6.5 and above (full version).
Alert
Samsung screens and media players running Tizen 4.0, 5.0, 5.5 & 6.0 (legacy version) will have limited remote commands available.

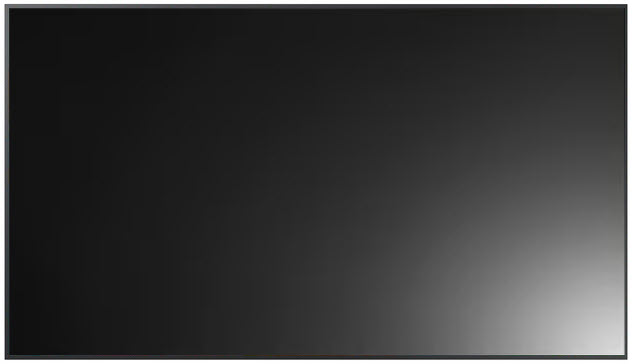

Digital Signage Screens

Tizen OS v4.0, 5.0, 5.5 & 6.0
  1. QMR Series - 500nit brightness, 24/7 operation
  2. QMT Series - 500nit brightness, 24/7 operation
  3. QBN Series - 350nit brightness, 16/7 operation
  4. QBR Series - 350nit brightness, 16/7 operation
  5. QBT Series - 350nit brightness, 16/7 operation
  6. QET Series - 300nit brightness, 16/7 operation
  7. KMA Series - 250nit brightness, 16/7 operation
  8. SHR Series - 700nit brightness, 24/7 operation
  9. OMB Series - 3000nit brightness, 24/7 operation
  10. OHA Series - 3000nit brightness, 24/7 operation
Tizen OS v6.5
  1. QMB Series - 500nit brightness, 24/7 operation
  2. QBB Series - 350nit brightness, 16/7 operation
  3. QHB Series - 700nit brightness, 24/7 operation
  4. QEC Series - 450nit  brightness
  5. WMB Series - 350nit brightness, 12/7 Touchscreen Interactive Display
  6. OHB Series - 1500nit brightness, 24/7 operation
Tizen 7.0
  1. QBC Series - 500nit brightness, 24/7 operation
  2. QMC Series - 500nit brightness, 24/7 operation
  3. QHC Series - 500nit brightness, 24/7 operation

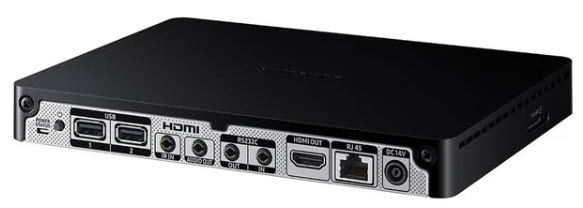

Media Player Box

  1. Samsung Smart Signage Box (SSB) - SBB-SS08 (Tizen 4.0)

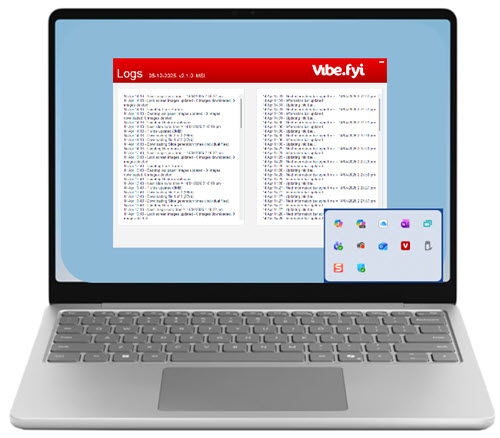

Windows Media Player

  1. Runs on a Windows PC or laptop (not a standalone device, Windows 10 and above)



FAQ

How do I find the model number for my device?
The model name for devices is usually located in one of the following places:
  • On the back or side of the device (a sticker or engraved label)
  • On the original packaging
  • In the device settings (for smart devices or TVs)

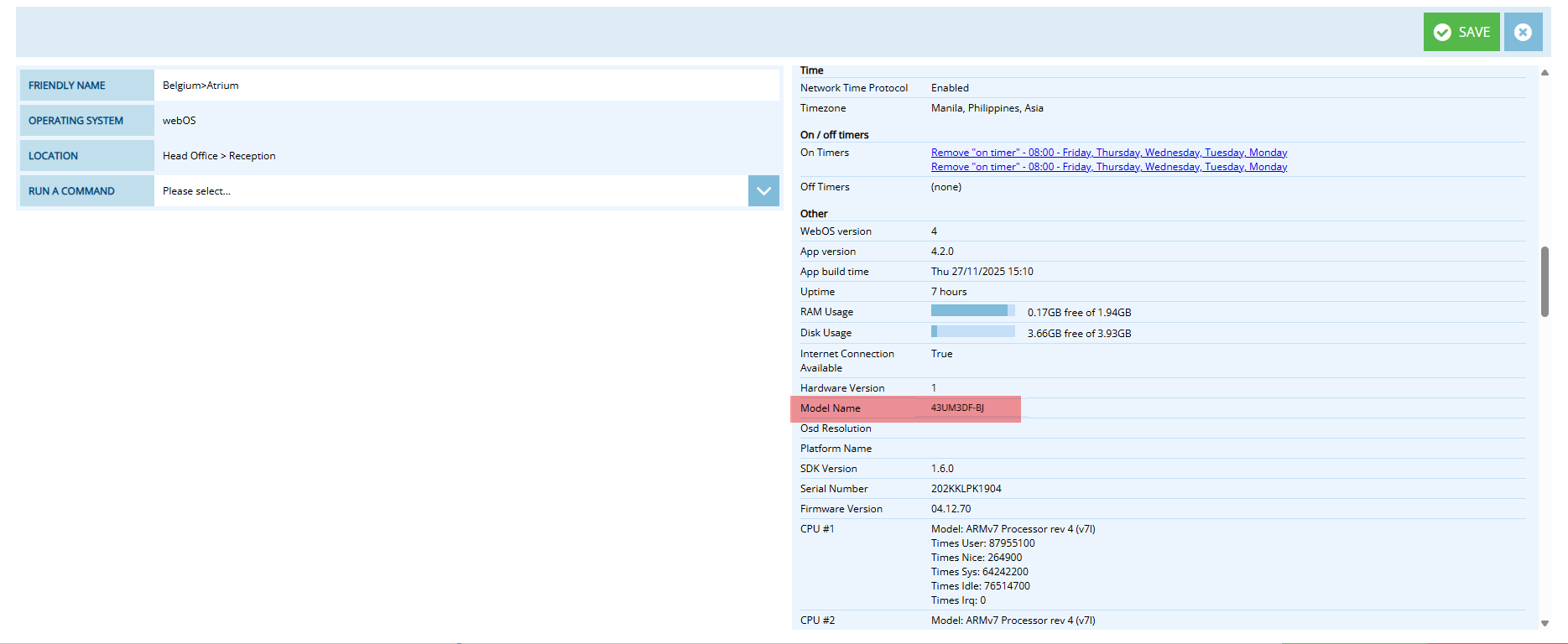

How can I find the screen model from a Vibe app running on screen?
  1. Open Vibe admin, and go to License
  2. Click on the Manage Device option, and select a device
  3. You will see the Model Name listed


How can I find the screen model series from a Vibe app running on screen?
  1. Open Vibe admin, and go to License
  2. Click on the Manage Device option, and select a device
  3. You will see the Model Name listed
  4. Series appears after Size. In this example:
    1. 43 is the size of the TV screen.
    2. Model 43UM3DF belongs to the UM3 Series.
